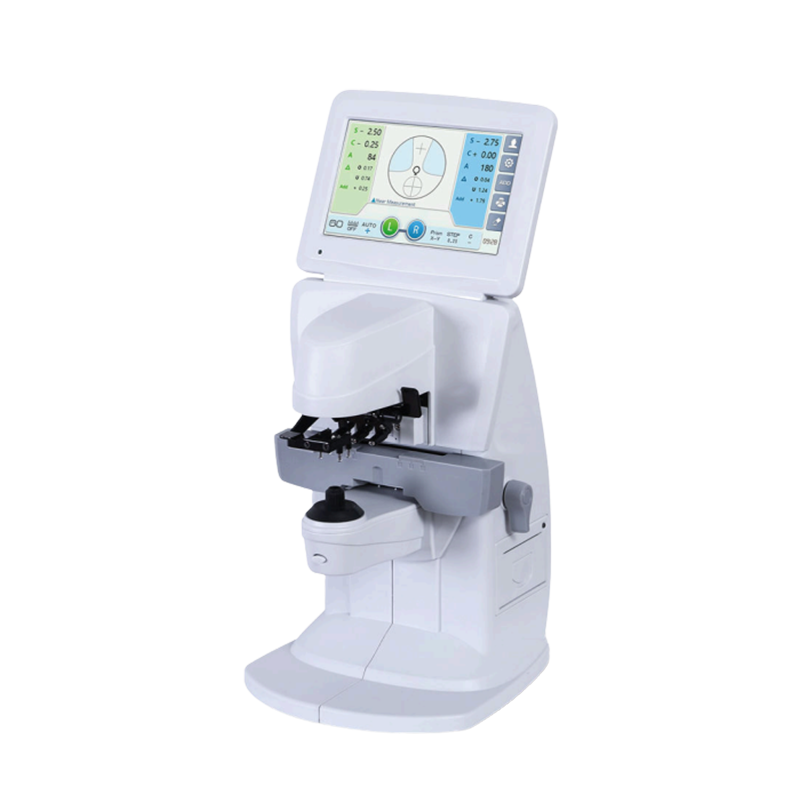

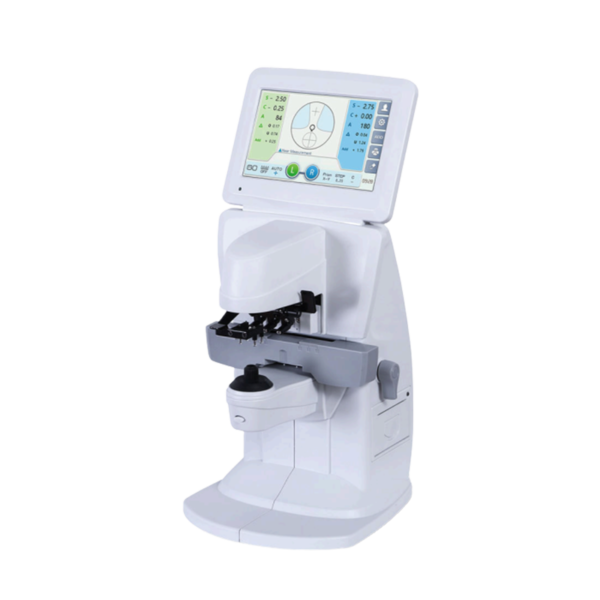

i-Optik TL-6800 Auto Lensmeter
- 7.0 inch touch screen
- Hartmann sensor with 145 measurement points
- UV/Blue light measurement function (optional)
- Green measurement light
- Data transmission with CV-7600 computerized vision tester
| Measurement Range | Sphere: | -25.00~+22.00D (0.01/0.06/0.12/0.25D step) |
| Cylinder: | 0.00~±10.00D(0.01/0.06/0.12/0.25D step) | |
| Axis: | 0° ~ 180° (1° step) | |
| ADD: | 0 to +10.00D (0.01/0.06/0.12/0.25D step) | |
| Prism: | 0 to 20 △ (0.01/0.06/0.12/0.25D △) | |
| Measurable lens diameter: | φ10 to 119 mm |
| Measurument Mode | Cylinder: | -, MIX, + |
| Prism: | X-Y, P-B |
| PD Measurement | 42.0 to 82.0mm (monocular), Single vision PD, Progressive lens far vision PD |
| Wavelength / Measuring point | 525nm (green) / 145 within nosepiece |
| Display | 7.0 inch touch screen (800×400) |
| Printer | Build-in thermal printer |
| Interface | RS232 / LAN / USB |
| Dimensions | 203 (W) x 233 (D) x 471 (H) mm |
| Weight | 4.5 kg |
| Power supply | AC 100 to 240 V, 50/60 Hz |
i-Optik TL-6800 Lensmeter
- 7.0 inch touch screen
- Hartmann sensor with 145 measurement points
- UV/Blue light measurement function (optional)
- Green measurement light
- Data transmission with CV-7600 computerized vision tester
| Measurement Range | Sphere: | -25.00~+22.00D (0.01/0.06/0.12/0.25D step) |
| Cylinder: | 0.00~±10.00D(0.01/0.06/0.12/0.25D step) | |
| Axis: | 0° ~ 180° (1° step) | |
| ADD: | 0 to +10.00D (0.01/0.06/0.12/0.25D step) | |
| Prism: | 0 to 20 △ (0.01/0.06/0.12/0.25D △) | |
| Measurable lens diameter: | φ10 to 119 mm |
| Measurument Mode | Cylinder: | -, MIX, + |
| Prism: | X-Y, P-B |
| PD Measurement | 42.0 to 82.0mm (monocular), Single vision PD, Progressive lens far vision PD |
| Wavelength / Measuring point | 525nm (green) / 145 within nosepiece |
| Display | 7.0 inch touch screen (800×400) |
| Printer | Build-in thermal printer |
| Interface | RS232 / LAN / USB |
| Dimensions | 203 (W) x 233 (D) x 471 (H) mm |
| Weight | 4.5 kg |
| Power supply | AC 100 to 240 V, 50/60 Hz |
Measurement Range
| Sphere: | -25.00~+22.00D (0.01/0.06/0.12/0.25D step) |
| Cylinder: | 0.00~±10.00D(0.01/0.06/0.12/0.25D step) |
| Axis: | 0° ~ 180° (1° step) |
| ADD: | 0 to +10.00D (0.01/0.06/0.12/0.25D step) |
| Prism: | 0 to 20 △ (0.01/0.06/0.12/0.25D △) |
| Measurable lens diameter: | φ10 to 119 mm |
Measurement Mode
| Cylinder: | -, MIX, + |
| Prism: | X-Y, P-B |
| PD Measurement | 42.0 to 82.0mm (monocular), Single vision PD, Progressive lens far vision PD |
| Wavelength / Measuring point | 525nm (green) / 145 within nosepiece |
| Display | 7.0 inch touch color (800×400) |
| Printer | Build-in thermal printer |
| Interface | RS232 / LAN / USB |
| Dimensions | 203 (W) x 233 (D) x 471(H) mm |
| Weight | 4.5 kg |
| Power supply | AC 100 to 240 V, 50/60 Hz |
